BOARDS · 40043

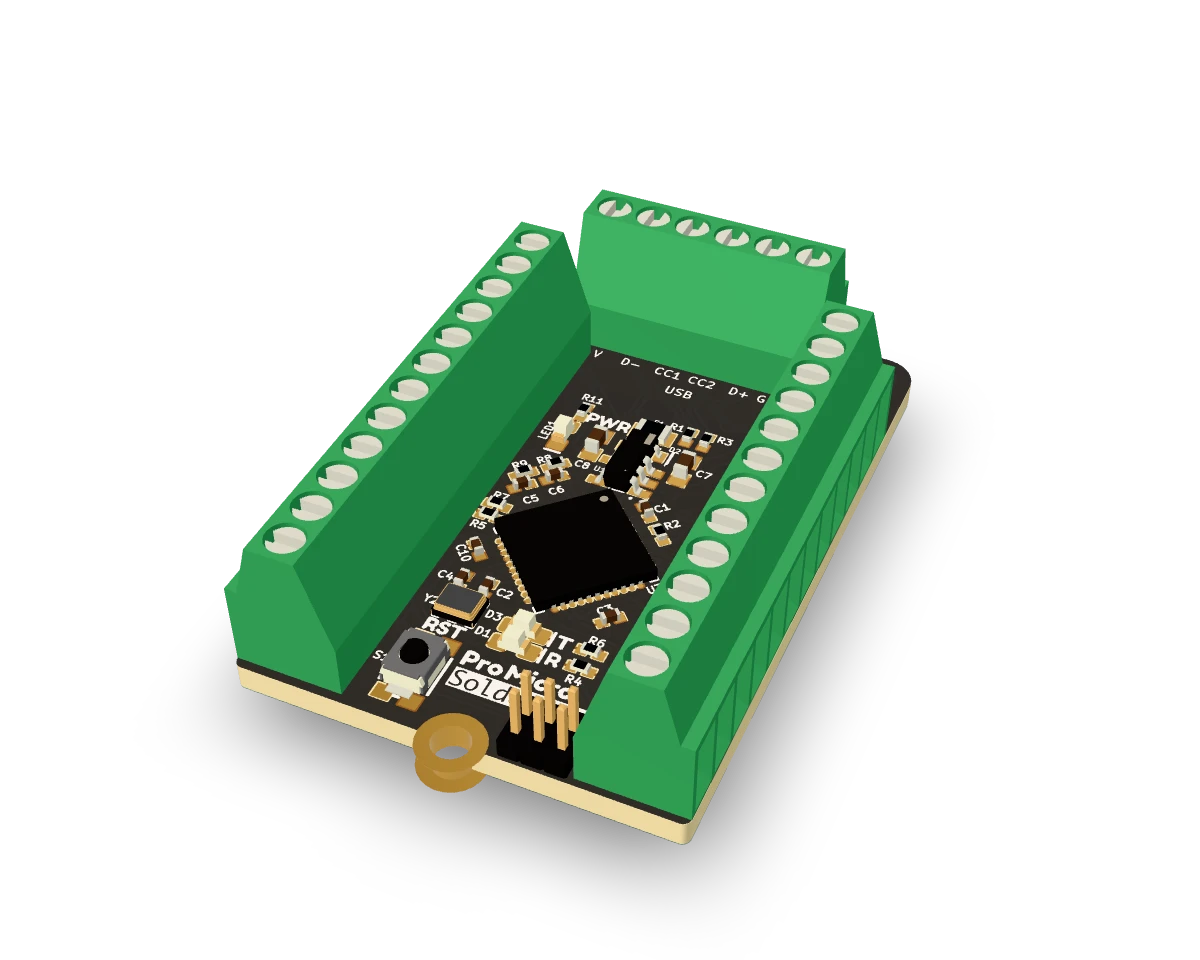

Solderless Arduino Pro Micro
Pro Micro-compatible board with screw terminals on every pin, grounded mounts, and a panel-mount USB-C cable.
$25.00
4 left in this run
1
USPS Ground, $5.62 · free US shipping over $75
A Pro Micro-compatible board for installs where you do not want to solder headers or smash a USB port against the enclosure wall. Every I/O pin and the USB pins (D+, D−, VBUS, GND) land on screw terminals. It ships with a 135mm panel-mount USB-C cable and three grounded mounting points.
| MCU | ATmega32U4 |
|---|---|
| USB | USB-C via screw terminals |
| Cable | 135mm panel-mount USB-C, USB 2.0 |
| Voltage | 5V |
| Pins | 24, all on screw terminals |
| Size | 25 × 34.5 mm, 12mm tall |
